Tech Specification

• Panel

  Screen Size	86″
  Panel Technology	IPS
  Back Light Type	Edge
  Aspect Ratio	16 : 9
  Native Resolution	3,840 x 2,160 (4K UHD)
  Refresh Rate	120 Hz
  Brightness	500 nit (Typ.)
  Contrast Ratio	1,100 : 1
  Dynamic CR	1,000,000 : 1
  Color gamut	BT709 95%fv
  Viewing Angle (H x V)	178 × 178
  Color Depth	1.07 Billon Colors (10 bit)
  Response Time	8 ms (G to G)
  Surface Treatment	28%
  Life Time (Typ.)	50,000 Hrs
  Operation Hours (Hours / Days)	24 / 7
  Portrait / Landscape	Yes / Yes

• Mechanical Specification

  Bezel Color	Black
  Bezel Width	14.3 mm (Even Bezel)
  Weight (Head)	49 kg
  Packed Weight	72.5 kg (With Pallet)
  Monitor Dimensions (W × H × D)	1,926.2 × 1,097.2 × 60.6 mm (without Handle and LG Logo)
  Carton Dimensions (W × H × D) (Box Outer Size)	2,037 × 1,250 × 285 mm
  Handle	Yes
  VESA™ Standard Mount Interface	600 × 400 mm

• Environment Conditions

  Operation Temperature	0°C to 40°C
  Operation Humidity	10% to 80%

• Power Consumption

  Typ./Max.	200 W / 260 W
  Smart Energy Saving	140 W
  DPM	0.5 W
  Power off	0.5 W
  BTU (British Thermal Unit)	683 BTU/Hr(Typ.), 888 BTU/Hr(Max)

• Certification

  Safety	CB / NRTL
  EMC	FCC Class “A” / CE / KC
  ErP	Yes (NewErP)

• OPS Compatibility

  OPS Type Compatible	Yes
  OPS Power Built In	No

• Software Compatibility

  	SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Cloud, SuperSign Media Editor, Mobile CMS, LG ConnectedCare

• Connectivity

  Input	HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (HDCP2.2/1.3), DVI-D (HDCP1.4), Audio, RS232C (4pin Phone-jack), RJ45(LAN), IR, USB (USB2.0 Type A(1)), Daisy Chain (HDMI, DP)
  Output	HDMI, Audio, RS232C (4pin Phone-jack), Daisy Chain (HDMI)

• Sound

  Speaker	Yes (10W X 2)

• Language

  	English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic

• Accessory

  Basic	Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
  Optional	OPS Kit(KT-OPSF), LSW640A/B(Wall Mount)

• Special Feature

  Tilt (Facedown)	Yes (Max 30º degree, 30ºC temperature, humidity 50%)
  IP Rating	IP5X
  Conformal Coating (Power Board)	Yes

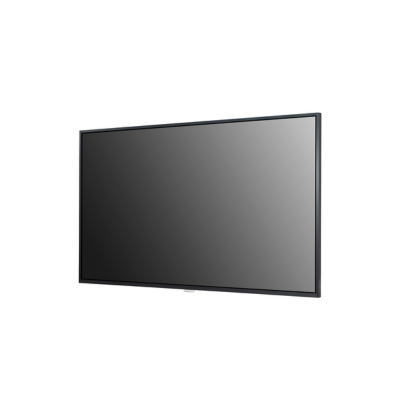

  New High Haze UHD Standard Signage

  * All images in this web page are for illustrative purposes only.





  Proper Display Brightness

  With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc.

  * Actual images available may differ from the example images shown.





  High-Performance with webOS

  LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.





  Conformal Coating

  In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc.

  * Actual images (signage display) available may differ from the example images shown.





  IP5x Certified Design

  The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.





  Compatible with AV Control System

  The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

  * Network based control
